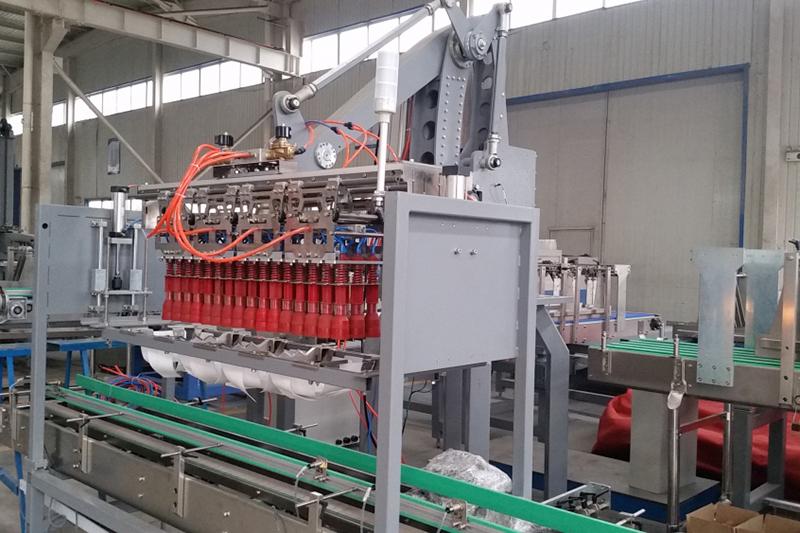

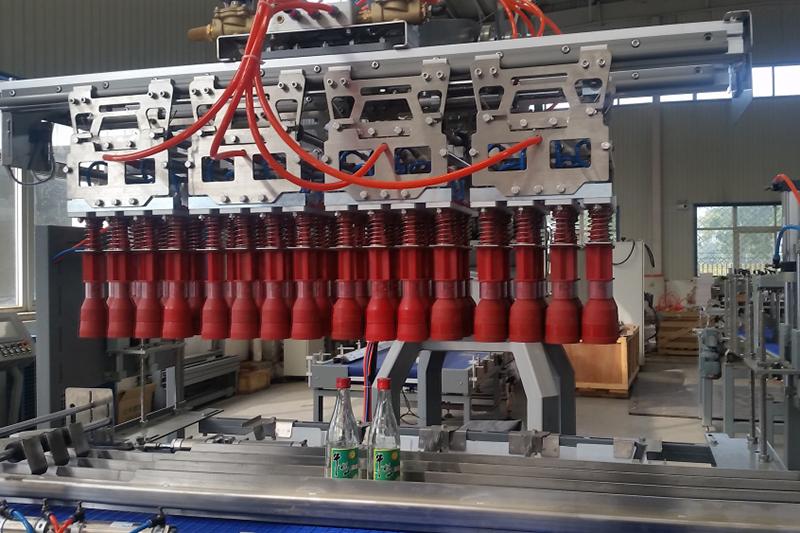

Robotic case packing system has a wide range of applications, small footprint, reliable performance, easy operation. It can be widely used in automatic packing of drinks, chemical, pharmaceutical, food and other industries. Its compact design can be integrated into a compact packaging machine and meet all your requirements in terms of distance of reach and payload. Its can be applied to 12000-72000 bottles/h production line.
| Dimension || Length 3680* width 1680* height 2800 |
| Production capacity || 20-35cases/min |
| package form || 12 bottles/case, 24 bottles/case |
| Specification of bottle || Φ50-Φ100bottle |
| Packing layers || One layer |
| Equipment power || 3 phase 5 line 380V 50HZ |
When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
