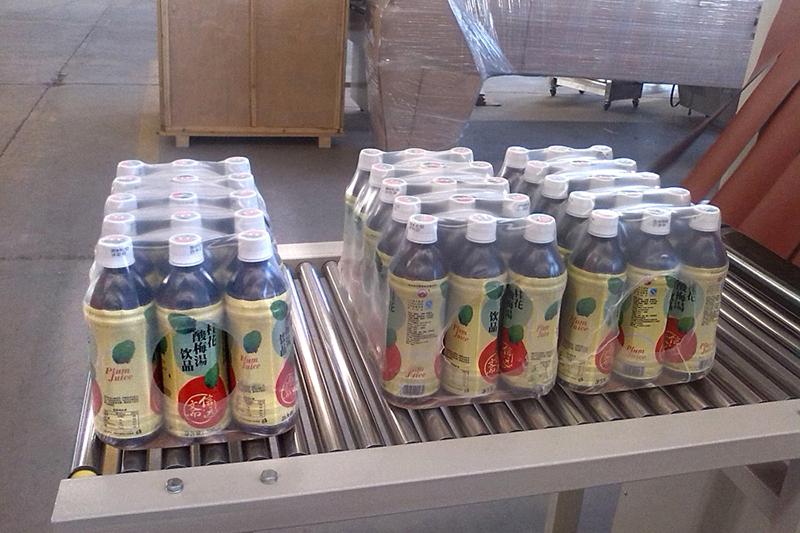

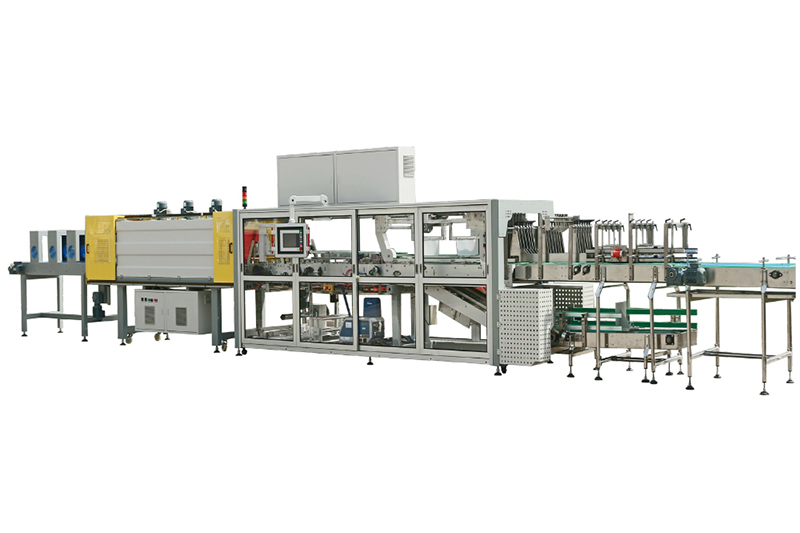

The YCBS35ZT tray + shrink film packing machine features a packaging speed of 30 pcs/min. It is suitable for beer, beverage, fruit juice, bottled water, dairy products, condiments, and so on with bottom support. Tray and film shrink packaging is more suitable for long-distance transportation than pure film package and pad and film packages.
| Equipment model || YCBS35ZT |
| Machine dimension || L18424mm*W1530mm*H2500mm |
| Shrinkage tunnel dimension || L2500mm*W700mm*H450mm |
| Maximum package dimension || Width=190-295, Length=268-450 |
| Packing speed || 30 pcs/min |
| Conveyor belt width || 610mm |
| Working voltage/power || 3Phase 5Line 380V 60KW |
| Working pressure || 0.6-0.8Mpa |
| Air consumption || 150NL/min |
| Total weight || 4500KG |
- Automatic assembly into packages during product transport, which can save time and improve efficiency.
- It has the characteristics of user-friendly interface, fast parameter setting, convenient communication and manipulation with touch LCD screen.
- Air circulation technology, shrink room has reasonable structure, thermal insulation, high accuracy of temperature control and better packaging effect.
- Suitable for packaging of different bottle diameters and different combinations.
- This machine can be equipped with a color shrink wrapping system and tray + film shrink packaging.
When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
